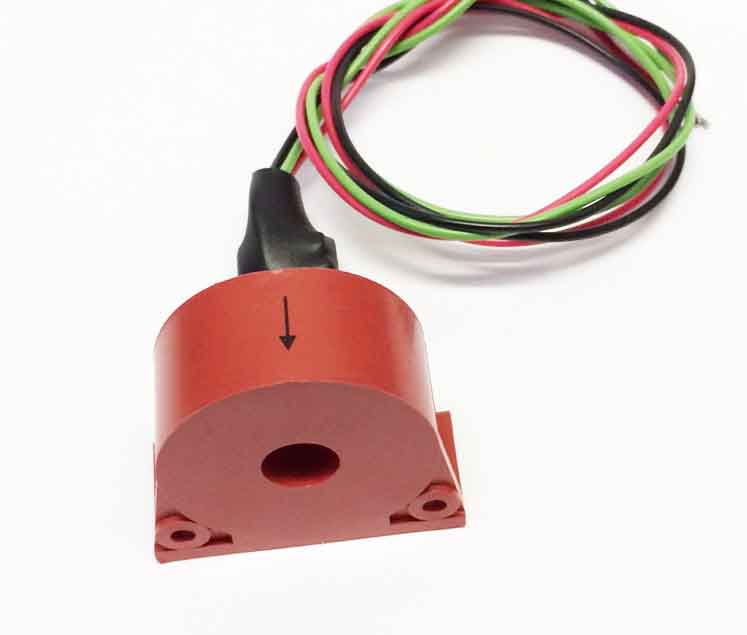

MGL Avionics Magnetic Closed Loop Current Sensor

CLICK IMAGE
FOR MORE INFO
MGL Avionics Magnetic Closed Loop Current Sensor
  Zoom
Our Price:  £72.00(Inc. 20% VAT)(£60.00 Exc. VAT)
+

Model:  magC
Brand:  MGL Avionics

Availability



In stock

MGL Avionics Magnetic Closed Loop Current sensor, the most accurate way to monitor the current in any wire.

Convenient contactless DC current sensing based on closed loop magnetics.  This sensor is well suited to measuring larger DC currents as well as the direction of the current. It provides a voltage output centred at 2.5V and is compatible with MGL systems.

The closed loop system is not sensitive to stray magnetic fields and provides accurate and repeatable readings.

The sensor provides for cable diameters up to 9.5mm. It can also be used for very small current measurements by looping the cable several times through the sensor, increasing sensitivity.

Download a manual HERE


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Features

• Measures a bi-directional 50A current (for example Charge/Discharge currents)

• Electrically isolated from the current carrying conductor

• Provides a 0.5V to 4.5Vdc output voltage (0A=2.5Vdc) which is proportional to the measured current.

• Closed loop current sensor technology provides increased accuracy and noise immunity.

• No current shunt is required.

• Compact size, overall dimensions are 41 x 37x 36mm

• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal for harsh electrical environments
