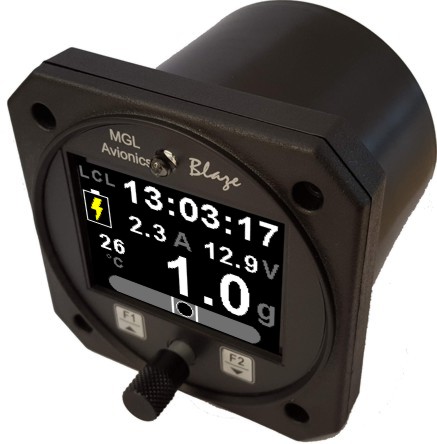

MGL Avionics Blaze INFO-2 G-Force Clock

CLICK IMAGE
FOR MORE INFO
MGL Avionics Blaze INFO-2 G-Force Clock
  Zoom
Our Price:  £269.00(Inc. 20% VAT)(£224.17 Exc. VAT)
+

Model:  B-INFO
Brand:  MGL Avionics

Availability



In stock

G-Force

UTC and Local Time

Slip Indicator

Outside Air Temperature

Battery Voltage Current and Charge

Flight Timer & Flight Log

Stopwatch, Countdown Timer and Alarm


The INFO-2 is a 3 1/8” sunlight readable multi-function colour display instrument. The INFO-1 has the following features:

G-force meter

The INFO-2 is capable of measuring g-forces exerted in an aircraft up to +-16g. The INFO-1 also has the facility to record the maximum positive and negative g-forces encountered (typically during a flight) in permanent memory, with a password protected reset facility. It also features two independent cycle counters to capture the amount of times a preset force has been exceeded. The INFO-2 is able to measure g-forces even if the instrument is not mounted exactly on the vertical axis of the aircraft.

UTC and Local Time display

The INFO-2 is capable of displaying both UTC (as known as Zulu time) and local time to facilitate ordinary ATC time reporting. Time is maintained by an internal lithium battery which can be replaced by the user.

Slip indicator

The INFO-2 can display a slip indicator. The slip indicator can be disabled in the menu system.

Battery Voltage, *Current and Charge display

The INFO-2 can be used to monitor your aircraft’s battery power supply. The INFO-1 is very useful in determining your battery’s health, charging status, as well as the current load consumption of your aircraft. The INFO-2 can be used in both 12V and 24V aircraft and can measure voltages up to 30V DC.

The INFO-2 uses the MGL Avionics magnetic field or active current shunt to measure the aircrafts current load. The INFO-2 contains a programmable low/high voltage alarm to automatically detect bad batteries and alternator failures. The maximum and minimum voltage reached is also recorded in permanent memory.

OAT display

OAT can be shown in either degrees Celsius or degrees Fahrenheit. The INFO-1 also contains a programmable low/high OAT alarm. The maximum and minimum OAT reached is also recorded in permanent memory.

Flight Timer & Flight log

The INFO-2 provides a 50 entry flight log that stores the start time and duration of each of the last 50 flights. The flight timer can either be started using a front push button or from a remote input.

Stopwatch, Countdown Timer & Alarm

Stopwatch and timers can be operated simultaneously to a programmable alarm, making the INFO-2 particularly suitable for sport flying competitions.

For more information download the manual


We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

Download a pdf drawing with Blaze  dimensions: CLICK HERE

Features

  • Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable colour LCD display

  • G-force range of +/- 16g

  • Records the maximum positive and negative g-forces encountered (typically during a flight) in permanent memory, with a password protected reset facility

  • Two independent cycle counters capture the amount of times a preset force has been exceeded

  • Able to measure G-forces even if the instrument is not mounted exactly on the vertical axis of the aircraft

  • Capable of displaying both UTC (Zulu time) and local time

  • Time is maintained by an internal lithium battery which can be replaced by the user

  • Can measure voltages up to 30V (compatible with both 12V and 24V aircraft supplies)

  • Contains a programmable low/high voltage alarm to automatically detect alternator failures and bad batteries

  • Uses the MGL Avionics magnetic field or active current shunt to measure the aircrafts current load.

  • *Contains a charge status indicator

  • OAT can be shown in degrees Celsius or degrees Fahrenheit

  • Contains a programmable low/high OAT alarm

  • Provides a 50 entry flight log that stores the start time and duration of each of the last 50 flights

  • The flight timer can either be started using a front push button or from a remote input

  • Stopwatch and timers can operate simultaneously to a programmable alarm

  • Standard 3 1/8” aircraft enclosure (can be front or rear mounted)

  • The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the menu system

  • Rotary control plus 2 independent buttons for easy menu navigation and user input

  • An external output activates when an alarm condition has been reached

  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments






Related Products
CLICK IMAGE
FOR MORE INFO

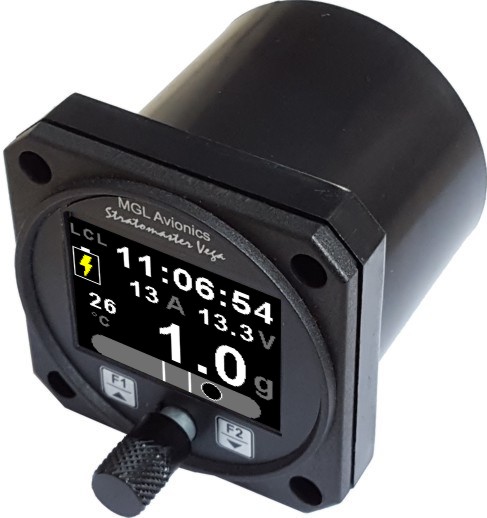

MGL Avionics Vega INFO-1 G-Meter Clock
