MGL Avionics Vega AHRS-3 horizon

CLICK IMAGE
FOR MORE INFO
MGL Avionics Vega AHRS-3 horizon
  Zoom
 MGL Avionics Vega AHRS-3 horizonMGL Avionics Vega AHRS-3 horizon
Our Price:  £719.00(Inc. 20% VAT)(£599.17 Exc. VAT)
+
SPECIAL OFFER:  add  SP-6 compass for £265 (normally £285)

Model:  V-AHRS3
Brand:  MGL Avionics

Availability



In stock

Self contained artificial horizon and magnetic compass indicator.

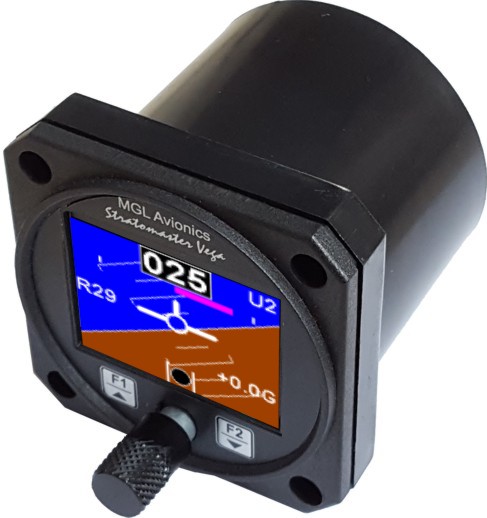

The AHRS-3 is a 2 1/4” / 56mm sunlight readable artificial horizon. This is a single horizon display - the picture above shows what is possible if the optional SP-6 compass is purchased. By turning the knob, you can quickly change between a horizon display and compass display. With the SP-6 attached the compass heading (025) is displayed top centre on the horizon display.

The AHRS-3 is a self contained attitude display with built in sensors.

The AHRS-3 does not require the MGL Avionics SP-7 sensor package in order to display the attitude, but requires the optional MGL-Avionics SP-6 compass sensor package to display heading.

The AHRS-3 can be setup to display the following:











  • Horizon with optional slip, turn indicator & G-Force

  • Turn and bank indicator

  • Compass display can be added by buying the SP-6 magnetometer module NOT INCLUDED

  • For more information DOWNLOAD THE MANUAL

  •

  •

We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

  • Features
      • Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display.

      • Artificial horizon reference system (AHRS) display unit with slip indication, turn and bank and G-Force indication

      • G-Force indicator

      • Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

      • The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the menu system

      • Rotary control plus 2 independent buttons for easy menu navigation and user input

      • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments

Download a pdf drawing with Vega dimensions: CLICK HERE
