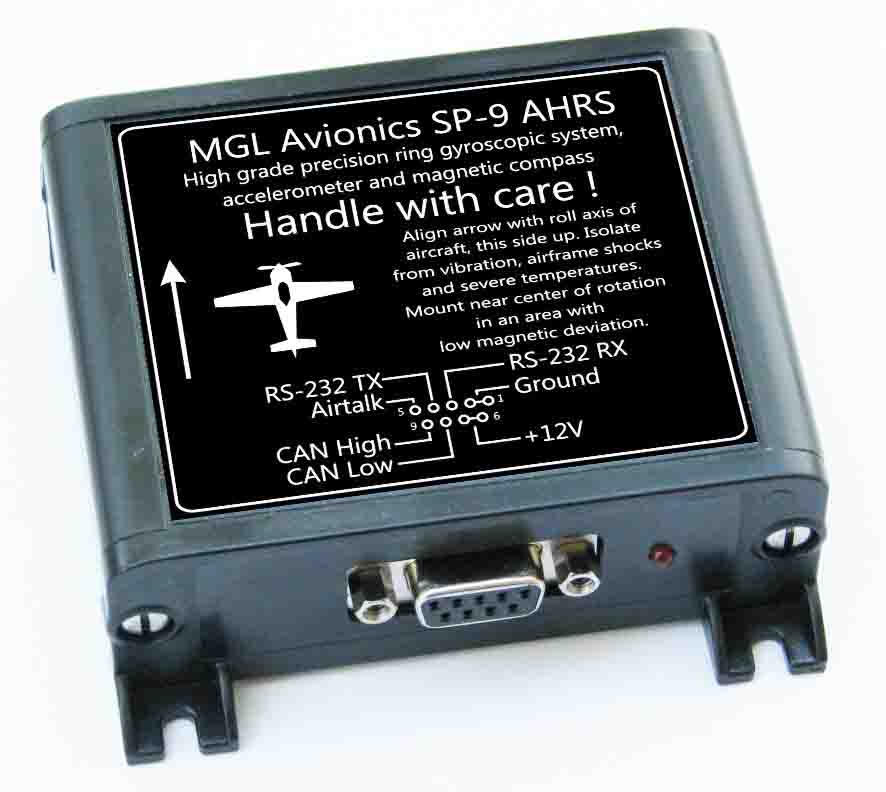

MGL Avionics SP-9 IFR grade AHRS
  Zoom
Our Price:  £1,600.00(Inc. 20% VAT)(£1,333.33 Exc. VAT)

Model:  SP9
Brand:  MGL Avionics

Availability



No stock

SP-9 AHRS is an  IFR grade remotely mounted module for horizon, balance ball, G-force displays and magnetic compass.




The SP-9 AHRS

JULY 2019 - LAA approve Van's RV-6A, registered G-RVSA, for IFR flight using the MGL SP-9 AHRS, MGL iEFIS Explorer, and MGL autopilot servos.





High grade ring gyro based AHRS and built in SP- 6 magnetometer for magnetic heading.

























The SP- 9 employs latest micro- machined ring gyroscope technology for performance that approaches FOG class ability in practical applications.



















Adding ORION class high accuracy accelerometers results in an IMU grade AHRS.



















Download the manual - Click Here





















We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.



Specifications:







AHRS



Gyro rates: Up to 300 degrees/second any axis

Accelerometer: G force measurement up to 16G

Low drift, high immunity to vibration







Magnetometer:



In flight calibration for 3D deviation compensation

External SP-6 can be used in case internal SP-6 is not suitable due to mounting location restrictions



Power supply:



8-14V DC recommended, low current consumption.



Interfaces:



CAN bus

RS232

Airtalk



Low weight:

Less than 150 grams.
