MGL Avionics Autopilot Servo

CLICK IMAGE
FOR MORE INFO

Zoom

Our Price: £1,190.00(Inc. 20% VAT)(£991.67 Exc. VAT)

–+

Add a Servo Rod and bearings kit

+ £25.00

Add a second servo and save £75

+ £890.00

Add a second Servo Rod and bearings kit

+ £25.00

Capstan kit to replace servo arm

+ £360.00

Model: 1427
Brand: MGL Avionics

Availability

In stock

MGL Avionics autopilot for use with all iEFIS models and XTreme EFIS.

MGL iEFIS and XTreme EFIS instruments act as the full autopilot control head - just add servos.

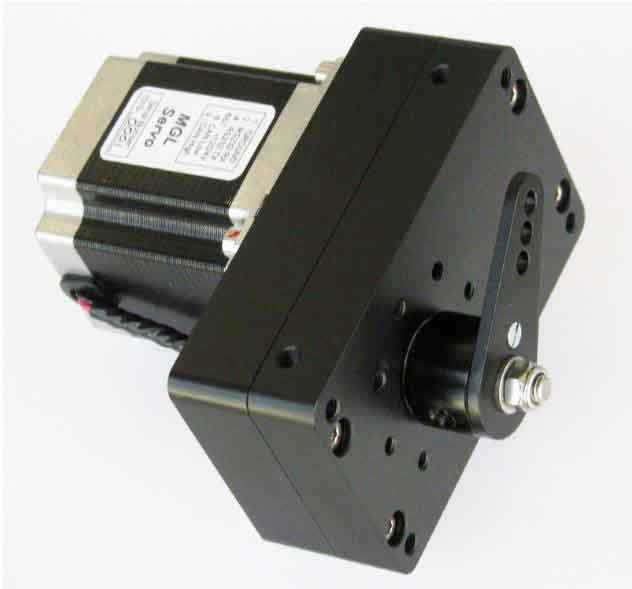

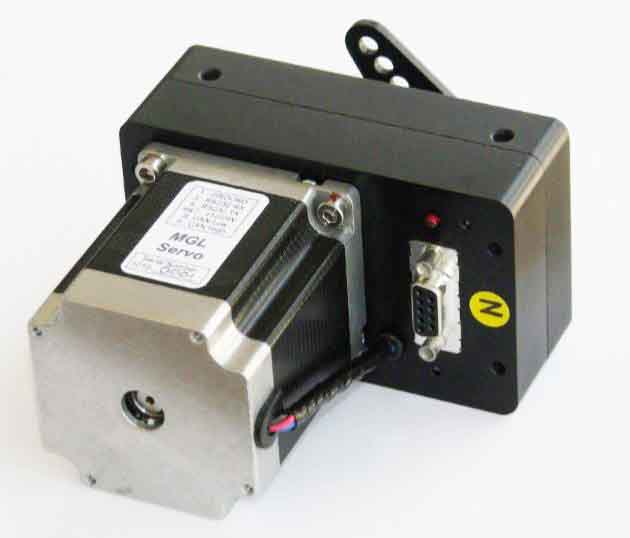

The MGL Servo is a stepper motor based system providing a torque of up to 4.8Nm (with shaft rotating).

The servo is not restricted to any particular range of output arm movement and can be used at any angle in this regard.

This servo is able to measure the external force acting on the output shaft for use with trim indication or automatic trim systems.

A single servo can be used for single roll axis (wing leveller), two servos will provide two axis, roll and pitch. Up to three servos can be used for full 3 axis control.

Multiple, threaded mounting points are available on the face and sides of the servo for ease of installation. A set of bolts are included.

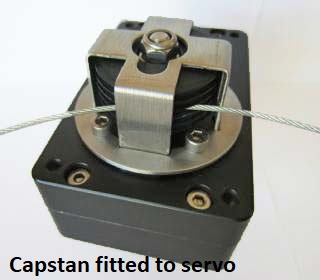

A Capstan kit is available as an option to replace the servo arm.

A rod and bearings fitting kit is available as an option and it includes: 1 Aluminium Tube 30 cm, one rod end bearing RHT with fitting and nut, one rod end bearing LHT with fitting and nut, and 4 rivets.

Download the Servo Manual HERE

Download the MGL Autopilot Manual HERE

Download the MGL Capstan Manual HERE
