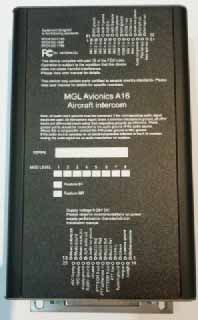

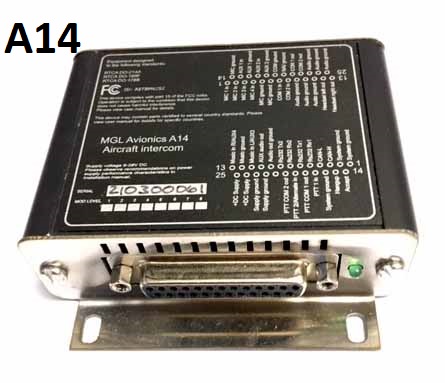

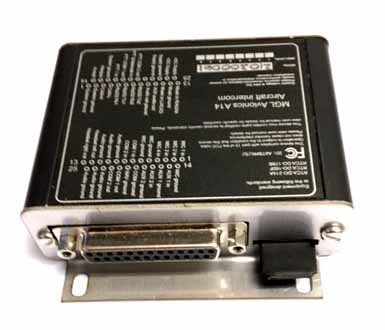

MGL Avionics A16 & A14 Audio Panel and Intercom

CLICK IMAGE
FOR MORE INFO
MGL Avionics A16 & A14 Audio Panel and Intercom
  Zoom
MGL Avionics A16 & A14 Audio Panel and IntercomMGL Avionics A16 & A14 Audio Panel and IntercomMGL Avionics A16 & A14 Audio Panel and Intercom
MGL Avionics A16 & A14 Audio Panel and IntercomMGL Avionics A16 & A14 Audio Panel and Intercom
Our Price:  £470.00(Inc. 20% VAT)(£391.67 Exc. VAT)
+
Select the required model

Model:  A14
Brand:  MGL Avionics

MGL Avionics A16 and A14 modular aviation audio panel and intercom.




The A16 and A14 is intended to be controlled either via an EFIS system (iEFIS G3 or MX1) and/or via a Razor touch screen control head.



This is a modular audio panel and 6 place (A16) or 4 place (A14) intercom system that allows you to optimise audio wiring routes behind the panel. With the A16 and A14 you are no longer restricted to having all audio wiring concentrated at the location of a panel mount intercom system.

The A16 and A14 provides noise cancelling inputs and ships with very effective RF block devices to prevent common issues such as RF feedback during transmission caused by ground loops or other issues.





Download a manual for the A16 and A14 includes details for using the Razor head








We ship worldwide. At checkout you can choose from low cost airmail options and express courier services like DHL or FedEx.

Within the UK we normally dispatch using Royal Mail or DHL. You choose the level of service at checkout.

VAT sales tax (20%) is included in the price displayed on the website. This tax applies to UK customers and EU customers. It will continue to apply to customers in the 27 EU member states from 1 January 2021. This is because we are located in Northern Ireland. The Northern Ireland Protocol, agreed by the EU to facilitate cross border trade with the Irish Republic after Brexit, also applies to the rest of the EU.  We continue to charge the UK rate of vat to customers in the 27 EU member states and there is no further tax to pay upon delivery. We can continue to zero rate the vat for EU business customers who enter their vat number at checkout.

Customers outside the EU do not pay vat and the tax will be removed at checkout. Local import taxes may apply - check with your local authority.

Currency. All products are priced in Pound Sterling (GBP, £). Using the "Currency" tab you can change the displayed currency to either Euro (EUR, €) or US Dollar (USD, $). This is an indicative exchange rate, automatically updated daily and is based upon the prevailing bank rate. The price you see may be displayed in USD or EUR but payment processing will be conducted in GBP. This means that your card issuer will apply their usual exchange rate, which is likely to be different from our indicative rate.

The A16 and A14 provides a compact solution for an advanced intercom system specifically designed for aircraft use.

The A16 supports 6 independent headsets and the A14 supports 4 independent headsets with dual circuit stereo and a rich selection of wired audio source inputs, including a stereo music source. Music streaming from Bluetooth enabled sources is also provided as well as hand-free profile for mobile phone use. Simultaneous support for two Bluetooth audio devices is possible. All headset input channels have individual VOX and sensitivity settings to support the use of mixed headsets.

A16 and A14 support for two COM radios, each with audio input and output with individual pilot / P2 PTT controls. Level control for all audio signals.

A16 support for two NAV radio audio inputs with independent level control - not available on A14.



Includes a cockpit voice recorder (CVR). Records last 35 minutes of combined active audio from 6 headset microphones and the two COM radios.

The A16 and A14 is intended to be controlled either via an EFIS system (iEFIS G3 or MX1) and/or via a Razor 3.18” touch screen control head. It is possible to connect multiple heads and have simultaneous control via EFIS and head(s).



Firmware updates on A16, A14 and Razor can be performed either via wired RS232 port or via Bluetooth wirelessly.

Communications protocols are available for third party use.
